Cleanroom garments with special ESD requirements
Quite often the process requirements include ESD specifications in addition to the classic cleanroom requirements. Dastex offers a wide range of different solutions for this. Many of our textiles comply the classic ESD basic requirements with regard to the dissipating of static electric charges (DIN EN 61340) and those for Electrostatic Protected Areas.
At the STFI Chemnitz two optimized coveralls and lab coats with ESD equipment, each made of the cleanroom fabrics ION-NOSTAT VI.2, DASTAT EC and ION-NOSTAT Plus, has been tested successfully according to DIN EN 61340. The cleanroom fabric ION-NOSTAT Plus has proved particularly successful here, due to its increased number of conductive carbon fibres.
Tested ESD lab coats
Basic model 02ESD1 / Basic model 02ESD2
- felled seam
- back sleeve and back in one piece
- sleeve and side seams with conductive tape
- front raglan seams with conductive tape and antistatic yarn
- hanging loop in the middle of the collar at the back

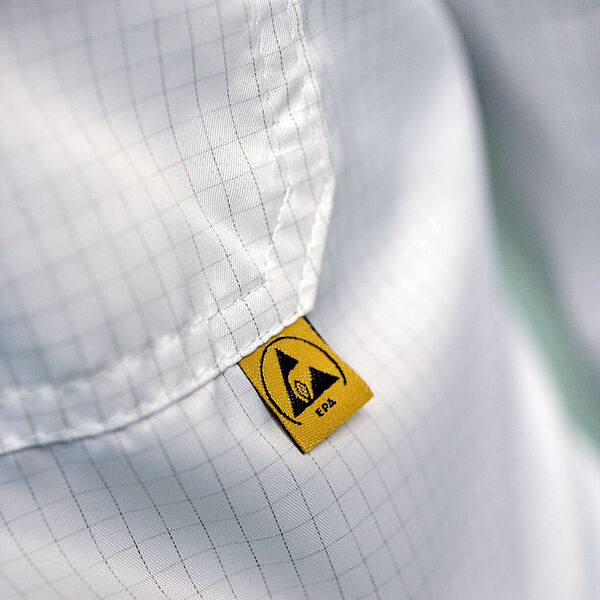

- EPA woven label left side seam
02ESD1
- elastic wristband (40 mm) on the sleeves
02ESD2
- antistatic knitted cuffs on the sleeves
Product recommendation based on cleanroom classes
Air cleanliness class EN ISO 14644-1
particulate monitored areas
Hygiene zones according to GMP
microbiologically monitored areas
PPE
Personal protective equipment
Regulation (EU) 2016/425
